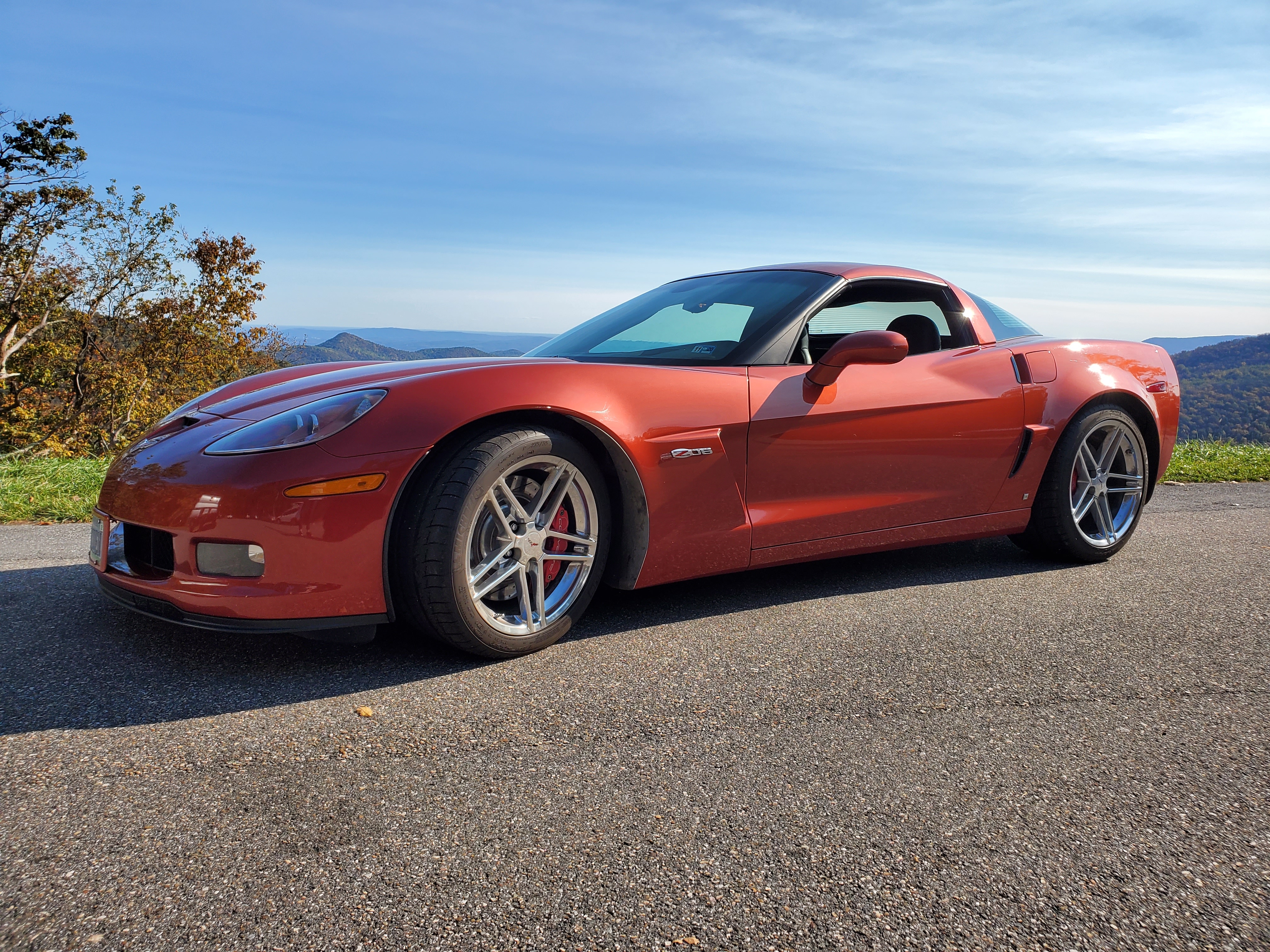

C6 2006 Z06 Corvette Statistics

Total Production: 6,272
Wheel Base: 105.70"
Track, Front: 62.10"
Track, Rear: 60.70"
Height: 49.10"
Length: 174.60"
Width: 76.00"
Curb Weight: 3,130.00 lbs.
Tire Size: FT: P275/35ZR18. RR: P325/30ZR19
Plant Built: Bowling Green
Serial Range: n/a
Base Engine: LS7 7.0L 427ci V-8 500hp@6200 (475 lb-ft torque@4800)
Bore & Stroke (in.): 4.125 x 4
Block Material: cast aluminum
Cylinder Head Material: cast aluminum
Valvetrain: OHV, 2 valves per cylinder
Fuel Delivery: Sequential Fuel Injection
Compression Ratio: 11:1
Recomended Fuel: 93 octane
Est Fuel Economy (mpg city/hwy/combined): TBD
Trans Type: Tremec 6-speed manual
Chassis, Front: short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber
Chassis, Rear: short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber
Traction Control: electronic traction control; Active Handling
Brakes Type: front & rear power-assisted disc with ABS w/6-piston ft & 4-piston rr calipers,cross-drilled rotors
Brake Rotor Diameter x Thickness (in.): front: 14 x 1.3; rear: 13.4 x 1
Wheel Size: front: 18 inch x 9.5 inch; rear: 19 inch x 12 inch

Options for Model Year 2006, Z06:

* = Option price during model year
** = Option price adjusted for inflation, in 2020 dollars
Code Description Quantity 2006* 2020**
02I  Red interior  923  n/a  n/a
19I  Ebony interior  3,761  n/a  n/a
1LZ  Equipment Group  n/a  $0
1YY37  Base Corvette Z06  6,272  $65,000  $84,559
2LT  2LT Equipment Group  n/a  $2,900  $3,773
84I  Titanium interior (gray)  1,588  n/a  n/a
AAB  Memory Package  5,789  n/a  n/a
AQ9  Seats, front Sport bucket  5,789  n/a  n/a
AR9  Seats, front bucket  483  n/a  n/a
FE4  Z06 Performance Package  6,272  n/a  n/a
FE9  Emissions, Federal requirements  4,211  $0
GM9  Rear Axle ratio - 3.63  n/a  n/a
GU6  Axle, 3.42 ratio  6,264  n/a  n/a
LS7  Engine, 7.0L (427 ci) LS7 V8 SFI   n/a  n/a  n/a
MAE  Export Units (other than Canada and Mexico)  362  n/a  n/a
MM6  Transmission, 6-speed manual  6,272  n/a  n/a
N37  Steering column, power telescopic  5,427  n/a  n/a
NB8  Emissions override  n/a  $0
NC7  Emissions override, Federal  n/a  $0
NE1  Emissions  n/a  $0
Q10  Wheels, Z06 silver painted aluminum  2,544  n/a  n/a
Q44  Z06 painted wheel  279  n/a  n/a
QL9  Wheels, Z06 polished aluminum  3,449  $1,295  $1,685
R8C  Corvette Museum Delivery  447  $490  $637
U2K  Sound system feature, XM Satellite Radio  5,316  n/a  n/a
U3U  Sound system with Navigation, ETR AM/FM stereo with CD player  4,175  $1,600  $2,081
U3Uxm  AM/FM Radio w/CD Player and DVD Navigation (w/XM)  n/a  $3,340  $4,345
U3Z  Japanese Nav Radio, Voice Recognition  54  n/a  n/a
US8  Sound system, ETR AM/FM stereo with CD player and MP3 playback  362  n/a  n/a
US9  Sound system, ETR AM/FM stereo with 6-disc  1,681  $1,740  $2,264
VK3  License plate bracket, front  n/a  $0
YF5  Emissions, California state requirements  n/a  $0
Z49  Canadian Units  310  n/a  n/a

Colors for Model Year 2006, Z06:

Code Description Quantity Additonal Charge
19U  LeMans Blue Metallic  671  $300.00
41U  Black  1,672  $0.00
45U  Velocity Yellow  1,464  $750.00
67U  Machine Silver Metallic  978  $0.00
81U  Victory Red  1,205  $0.00
88U  Daytona Sunset Orange Metallic  282  $0.00
