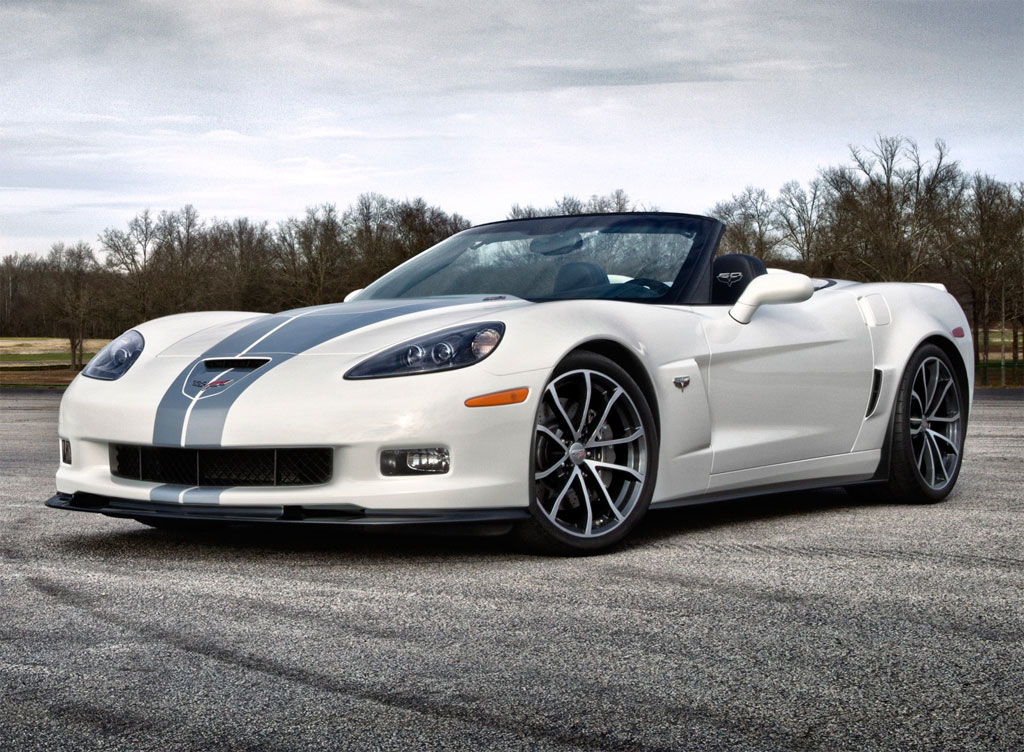

C6 2009 Convertible Corvette Statistics


Total Production: 3,343
Wheel Base: 105.70"
Track, Front: 62.10"
Track, Rear: 60.70"
Height: 49.00"
Length: 174.60"
Width: 72.60"
Curb Weight: 3,222.00 lbs.
Tire Size: FT: P275/35ZR18; RR: 325/30ZR19
Plant Built: Bowling Green
Serial Range: n/a
Base Engine: 6.2L V-8 LS3
Bore & Stroke (in.): 4.06 x 3.62
Block Material: cast aluminum
Cylinder Head Material: cast aluminum
Valvetrain: OHV, 2 valves per cylinder
Fuel Delivery: sequential EFI
Compression Ratio: 10.7:1
Recomended Fuel: 93 octane (recommended but not required)
Est Fuel Economy (mpg city/hwy/combined): Auto:15/25; Man:16/26
Trans Type: 6-speed manual/6-speed paddle-shirt auto
Chassis, Front: short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber
Chassis, Rear: short/long arm ( SLA ) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber
Traction Control: electronic traction control; Active Handling
Brakes Type: ft and rr power-assisted disc with ABS; cross-drilled rotors with Z51 pkg and Magnetic Ride Control
Brake Rotor Diameter x Thickness (in.): ft: 12.8 x 1.26; rr: 12 x 1; Z51 Performance Package: ft: 13.4 x 1.26; rr: 13 x 1
Wheel Size: front: 18 inch x 8.5 inch; rear: 19 inch x 10 inch

Options for Model Year 2009, Convertible:

* = Option price during model year
** = Option price adjusted for inflation, in 2025 dollars
Code Description Quantity 2009* 2025**
1YY67  Base Corvette Convertible  3,343  $0
2LT  Option Package  238  n/a  n/a
3LT  Option Package  1,974  n/a  n/a
4LT  Option Package  307  n/a  n/a
AAB  Memory Package  2,413  n/a  n/a
AQ9  Seats, Sport front bucket  3,102  n/a  n/a
AR9  Seats, front bucket with leather seating surfaces,  241  n/a  n/a
C05  Manual Convertible Top  245  n/a  n/a
CM7  Convertible top, power folding,  3,098  n/a  n/a
D30  Color Combination Override  38  n/a  n/a
DD0/DD8  Electrochromatic and Heated Mirrors  3,343  n/a  n/a
F55  Magnetic Selective Ride Control,  1,126  n/a  n/a
FE1  Suspension, 4-wheel independent  1,218  n/a  n/a
FE2  RTD Suspension (req'd w/F55 on Base)  1,126  n/a  n/a
FE3  Sport Ride Suspension  999  n/a  n/a
FE9  Emissions, Federal requirements  2,144  n/a  n/a
GM8  Rear Axle Ratio - 2.56  1,658  n/a  n/a
GT1  Specialty: GT1  17  n/a  n/a
GU2  Rear axle, 2.73 ratio, limited-slip,  1,080  n/a  n/a
GU6  Rear axle, 3.42 ratio  605  n/a  n/a
J55  Heavy Duty Brakes  2,125  n/a  n/a
KA1  Seats, heated driver and front passenger  2,385  n/a  n/a
KNP  Transmission Cooler  296  n/a  n/a
KNR  Axle Cooler  69  n/a  n/a
KPS  Engine Oil Cooler  356  n/a  n/a
LS3  Engine, 6.2L V8 SFI  n/a  n/a  n/a
MM6  Transmission, 6-speed manual  309  n/a  n/a
MX0  Transmission, 6-speed paddle shift with automatic modes  2,738  n/a  n/a
MZ6  Six-speed Manual Transmission w/Z51  296  n/a  n/a
N37  Steering column, power telescopic with manual tilt  2,374  n/a  n/a
NPP  Exhaust, dual-mode, performance,  2,033  n/a  n/a
Q9V  Wheels, 5-spoke, forged chrome aluminum,  1,891  n/a  n/a
QG6  Wheels, 5-split spoke, Silver-painted aluminum  502  n/a  n/a
QG7  Wheels, 5-spoke, forged polished aluminum,  492  n/a  n/a
QX1  Wheels, 5-split spoke, Competition Gray-painted aluminum  83  n/a  n/a
R8C  Corvette Museum Delivery  83  n/a  n/a
SLL  Sold Orders  668  n/a  n/a
SLM  Stock Orders  2,168  n/a  n/a
U2K  XM Radio  3,274  n/a  n/a
U3U  Audio system with navigation  1,632  n/a  n/a
U65  Premium Bose Speaker System  2,413  n/a  n/a
U66  Base Speaker System  930  n/a  n/a
UE1  OnStar, 1-year of Safe and Sound plan  3,274  n/a  n/a
UG1  Universal Home Remote,  2,344  n/a  n/a
UPF  Bluetooth for phone  3,029  n/a  n/a
US8  Audio system, AM/FM stereo with CD player and MP3 playback  930  n/a  n/a
US9  Audio system  779  n/a  n/a
UV6  Head-Up Display  2,413  n/a  n/a
VDN  Indoor Vehicle Cover (LPO)  24  n/a  n/a
VEB  Pedal Covers (LPO)  34  n/a  n/a
VJ5  Outdoor Vehicle Cover (LPO)  10  n/a  n/a
VPK  Limited Personalization Option  26  n/a  n/a
VPL  Limited Personalization Option  403  n/a  n/a
Z51  Z51 Performance Package,  999  n/a  n/a
ZHZ  Specialty: Hertz (all yellow)  375  n/a  n/a

Colors for Model Year 2009, Convertible:

Code Description Quantity Additonal Charge
10U  Arctic White  260  $0.00
17U  Blade Silver Metallic  269  $0.00
41U  Black  560  $0.00
45U  Velocity Yellow Tintcoat  565  $750.00
57U  Cyber Gray Metallic  393  $0.00
74U  Victory Red  369  $0.00
83U  Atomic Orange Metallic  91  $300.00
85U  Jetstream Blue Metallic Tintcoat  191  $750.00
89U  Crystal Red Metallic Tintcoat  645  $750.00
